Pi-Star Firmware upgrade mmdvm hs hat flash

Pi-Star Firmware upgrade mmdvm hs hat flash
the command has change in new versions of pi-star, so steps are:

- open your pi-star dashboard in a web browser
- go to configuration
- go to expert
- go to SSH-Access
- log on (user pi-star + your password)
- type "sudo pistar-mmdvmhshatflash hs_hat"
- confirme by pressing any key (last chance to back out by pressing CTRL-C here)

Enable setup NXDN reflector on MMDVM

F1MIJ PASCAL (@ f1mij) tweeted at 9:18 PM on Tue, Feb 13, 2018:

For the NXDN reflector, you must update your MMDVM.ini to include:

F1MIJ PASCAL (@ f1mij) tweeted at 11:25 PM on Wed, Feb 14, 2018:

IMPORTANT: Do not forget for your NXDN tests to replace the usual "MMDVM" files with those of the experimental "MMDVM-nxdn" available in the Github Branch of G4KLX:

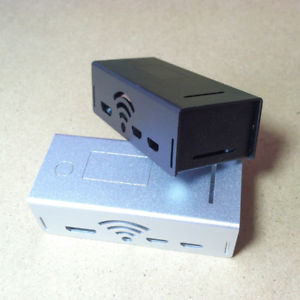

Black Aluminum Protective Enclosure shell Case cover For Raspberry pi zero w

A nice box for those interested, I ordered it

Black Aluminum Protective Enclosure shell Case sover For Raspberry pi zero w



Black Aluminum Protective Enclosure shell Case sover For Raspberry pi zero w


MMDVM HotSpot hat for RPi type B

MMDVM HotSpot hat for RPi type B

HotSpot units, built by David S51DA and Blas EA7GIB. Thanks to both for valuable feedback and contribution of the photos!

This page is about homebrewing an (almost) easy to build MMDVM HotSpot module for Raspberry Pi - type B.

After successfully finishing three boards of those wonderfull miniature HS hats for Rasbberry Pi-zeroW, designed by Mathis, DB9MAT and Florian, DF2ET , I decided to draw a simmilar, however bigger HS hat board, that would fit a normal sized (type B) Raspberry Pi mini computer. Although a bigger size does barely mean an improvement when discussing HotSpot solutions, there is one big advantge - bigger board allows implementation of bigger and therefore easyer handleable SMD components.

MMDVM HS Hat hotspot Firmware Installation

MMDVM HS Hat hotspot - Firmware Installation

Link here :   mmdvmhshat.cf

mmdvmhshat.ga ::
https://github.com/mathisschmieder/MMDVM_HS_Hat/blob/master/README.md

This utility includes firmwares binaries and USB drivers for Windows 7/8/10. If you have problems with the installer, you can download ZUMspotFW.zip for a manual installation.

For specific details about the firmware installation, check these instructions. The process is similar to the installation on the ZumSpot Pi.
Enable the following settings in Config.h:
#define MMDVM_HS_HAT_REV12
#define ENABLE_ADF7021
#define ADF7021_14_7456
#define STM32_USART1_HOST
#define ENABLE_SCAN_MODE
Build the firmware:
make
And finally upload the firmware to the MMDVM_HS_Hat:
sudo make mmdvm_hs_hat

Warning - FAKE - CLONE - pirates of the MMDVM_HS_Hat board

Warning - pirates of the MMDVM_HS_Hat board

Flo (DF2ET) (@flo_0_)
2017-12-21, 3:55 PM
The pirates are too dumb to copy our #MMDVM_HS_Hat board ... Please pay attention: This will not work. pic.twitter.com/MmUzY2zbS6

ircddb remote control pi-star

ircddb remote control pi-star

using ircddbremote app on an iphone to control pi-star running on raspberry pi 3 and MMDVM hotspot HAT.



MMDVM_HS_Hat boards in the mail

#MMDVM_HS_Hat boards for @DM9KS, @do2bn and @dh6kq successfully baked and tested.

Now in the mail to the recipients.

Onboard ceramic antenna(RainSun)

SMA socket external antenna

complete - Pi-Star Firmware uphrade mmdvm hs hat flash

Pi-Star Firmware uphrade mmdvm hs hat flash


login as: pi-star
pi-star@10.32.1.123's password:
╔═══════════════════════════════════════════════════════════════════════╗
║                                                                       ║
║           ██████╗ ██╗      ███████╗████████╗ █████╗ ██████╗           ║
║           ██╔══██╗██║      ██╔════╝╚══██╔══╝██╔══██╗██╔══██╗          ║
║           ██████╔╝██║█████╗███████╗   ██║   ███████║██████╔╝          ║
║           ██╔═══╝ ██║╚════╝╚════██║   ██║   ██╔══██║██╔══██╗          ║
║           ██║     ██║      ███████║   ██║   ██║  ██║██║  ██║          ║
║           ╚═╝     ╚═╝      ╚══════╝   ╚═╝   ╚═╝  ╚═╝╚═╝  ╚═╝          ║
║                                                                       ║
╚═══════════════════════════════════════════════════════════════v3.4.11═╝
From your Windows Computer:
Pi-Star Dashboard:      http://pi-star/

From your Apple iPhone, iPad, Macbook, iMac etc.
Pi-Star Dashboard:      http://pi-star.local/

Pi-Star's disk is read-only by default, enable read-write with "rpi-rw".
Pi-Star built by Andy Taylor (MW0MWZ), pi-star tools all start "pistar-".

pi-star@pi-xxxx(ro):~$ rpi-rw
pi-star@pi-xxx(rw):~$ sudo su

MMDVM_HS_HAT dual band (VHF/UHF) operation

MMDVM_HS_HAT dual band (VHF/UHF) operation

Just discover you can VHF (144-148 MHz) support for ZUMSpot by an external 18 nH inductor between L1 and L2 pins of ADF7021. This will enable dual band (VHF/UHF) operation.

GitHub - mathisschmieder/MMDVM_HS_Hat: MMDVM_HS Hat

This project provides a Raspberry Pi Hat for the MMDVM_HS Hotspot. It was designed for the Raspberry Pi Zero, but should work on any other Pi with the Hat interface. ... It can carry a Raspberry Pi Zero (W) with MMDVM_HS_Hat (SMA) on top.

How to Identify a Genuine MMDVM_HS_Hat:

How to Identify a Genuine MMDVM HS Hat by florian Wolters.

To help distinguish between an orginal #MMDVM_HS_Hat and a clone have a look at the two pics below. The first one is an original board revision 1.2 manufactured by us.  It has the name “MMDVM_HS_Hat” on it in the upper right part. The silkscreen is properly placed and our callsigns are clearly readable. In addition to that there is the Open Source Hardware (OSHW) logo on the lower left.

Real MMDVM_HS_Hat Genuine
Real MMDVM_HS_Hat Genuine

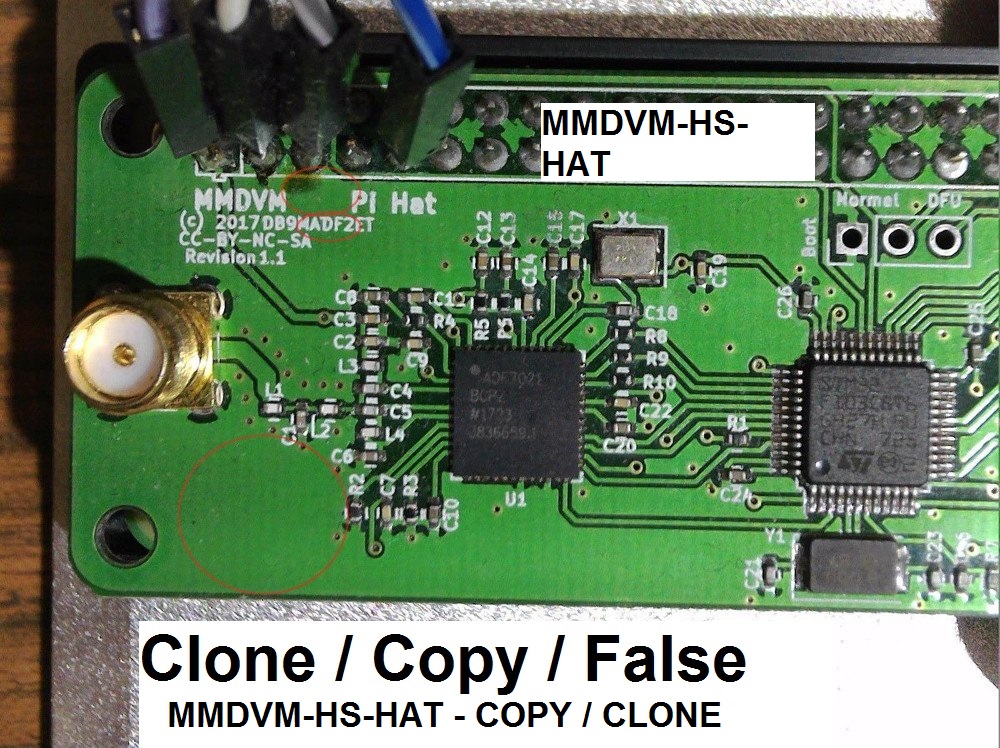

The next picture shows the clone. It is only revision 1.1 and has misplaced silkscreen in the area of our callsings. The OSHW logo was removed as well as the “_HS” suffix on the name. Secondly it seems as if the RF parts are of poor quality. The picture is courtesy of Lindsay, VK2AMV.

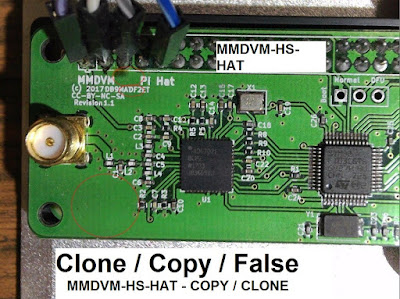

Fake MMDVM_HS_Hat False and copy
Fake MMDVM_HS_Hat False and copy
 Warning - FAKE - CLONE - pirates of the MMDVM_HS_Hat board

How to Run Linux/Unix Terminal on windows 7/8/8.1/10

How to Run Linux/Unix Terminal on windows 7/8/8.1/10

Cygwin Software :  Linux/Unix Terminal on windows

This video show how to Install Linux Terminal on windows with the help of Cygwin Software, Get that Linux feeling - on Windows Linux or Unix having the bunch of great features and advantages as compared with Windows Operating System. If someone wants to run Linux or Unix command and execute the code it’s not possible without having the terminal on Linux Operating System. The difficult situation may arrive if someone wants to run Linux command line code and do not have the Linux machine. So Today in this post I will show you how to install Linux or Unix Terminal and Run Command line codes on Windows Operating System. Without doing big Stuff like dual booting or installing Linux OS on VMware workstation there is tool named Cygwin which helps to execute the Linux command line code on windows OS. Please follow the Youtube Video Tutorial attached below to install and run Linux or Unix terminal on windows XP, 7+.


MMDVM HS Hat hotspot - WiresX FT2D YSF C4FM

MMDVM HS Hat hotspot - WiresX FT2D YSF C4FM

Using the WiresX key on the FT2D YSF-C4FM single-mode use condition C4FM-YSF. Materials:

MMDVM_HS PI HAT with RPI Zero W.
